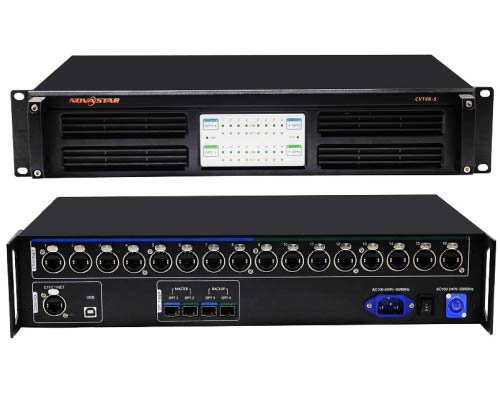

Novastar CVT4K-s

The NovaStar CVT4K-S is a fiber optic converter with 4 optical outputs that enable a data transfer of 10 gigabits. The range of the signal transmission can be up to 15 kilometers. The required SFP modules with LC interface are already integrated in the CVTK4K-S.

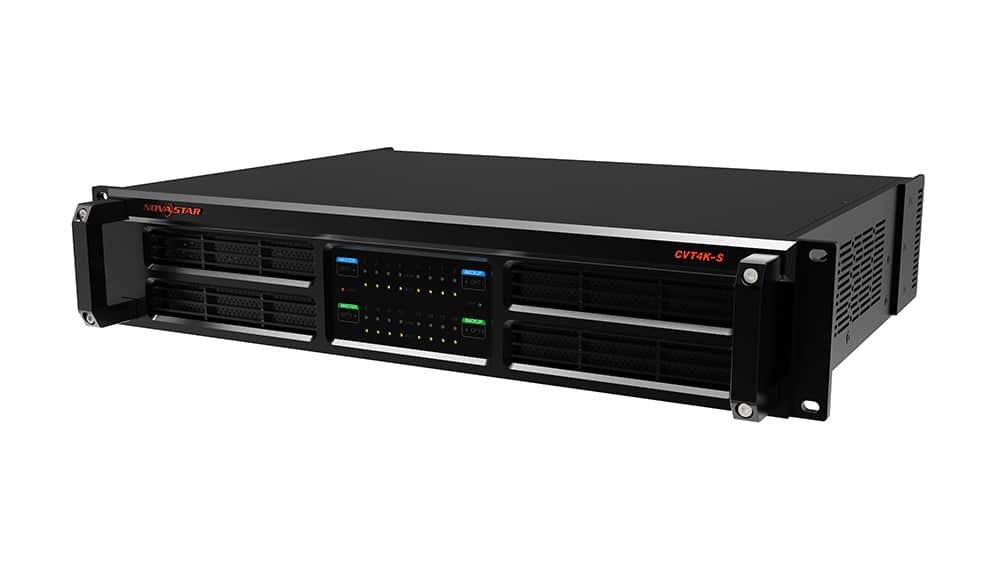

The device also has 16 Ethernet ports. Each Ethernet port has a status display on the front of the device, which greatly simplifies the control of the signal flow.
A further feature of the device is the possibility of a redundant power supply via the 3-pole cold device connection and the powerCON connection. Of course, only one of the power supply inputs can be used.
With these features, the NovaStar CVT4K guarantees that your event runs smoothly.

Specyfikacja

Input and Output

4x optical ports for data input or output

OPT1 corresponds to Ethernet ports 1-8 and OPT2 corresponds to Ethernet ports 9-16.

OPT3 is the backup of OPT1 and OPT4 is the backup of OPT2.

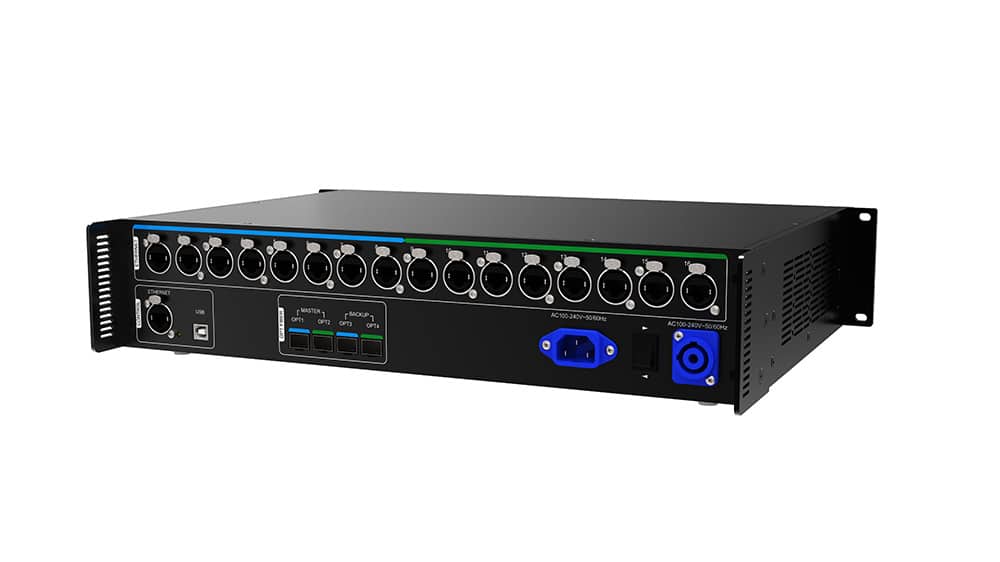

16x Neutrik Gigabit Ethernet ports for data input or output

Description of the optical module:

– Installed at the factory, hot-pluggable

– Transmission rate: 9.95 Gb/s to 11.3 Gb/s

– Wavelength: 1310 nm

– Transmission distance: 10 km

Optical fiber selection:

– Model: OS1/OS2

– Transmission mode: Single-mode twin-core

– Cable diameter: 9/125 ?m

– Connector type: LC

– Insertion loss: ? 0.3 dB

– Return loss: ? 45 dB

Control

ETHERNET Ethernet port for control computer connection

USB Type-B USB port for control computer connection, not for cascading

Features:
– 16 Neutrik Ethernet Outputs
– 4 SFP fiber optic outputs
– Redundant or dual power supply
– Supply voltage: AC-100-240V, 50/60HZ
– Plug’n’Play: no drivers required
– Control via USB or LAN
