NovaStar?s flagship 4K LED display controller, the MX40 Pro, offers rich video input connectors (HDMI 2.0, DP 1.2 and 12G-SDI) and 20 Ethernet output ports. It works with the brand-new VMP screen configuration software to provide users with many new, robust features including Image Booster 2.0, dynamic booster, full grayscale calibration, color adjustment, quick and easy screen mapping, and much more.
The MX40 PRO includes features such as: Genlock, XR function, Dynamic booster, Full gray-scale calibration, HDR function, LED image booster, Low latency, Pixel level brightness and chroma calibration, Individual gamma adjustment, etc.
- Ekrany LED
- Processing obrazu
- Projektory multimedialne
- Media serwery
- Ekrany projekcyjne
- Ekrany LCD
- Systemy zasilania
- Sprzęt filmowy

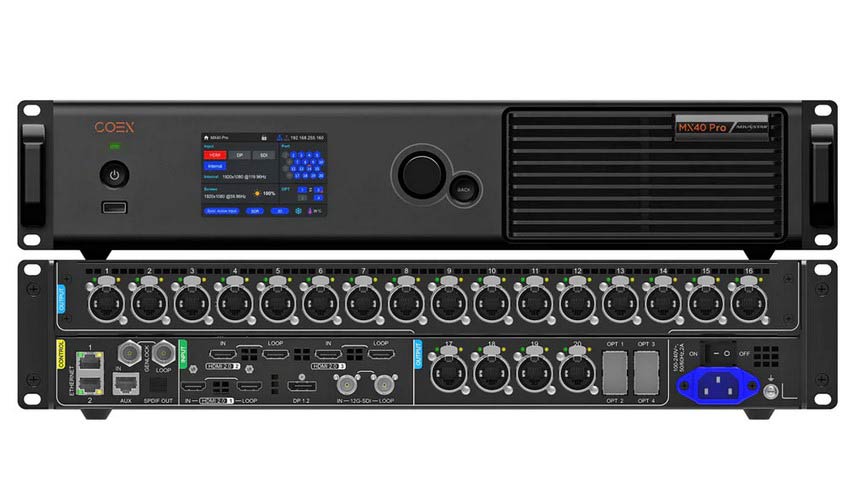

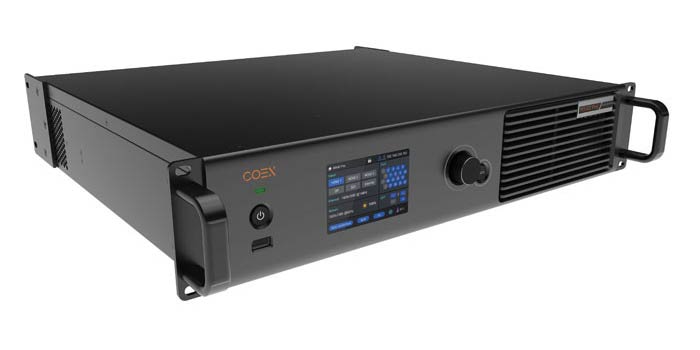

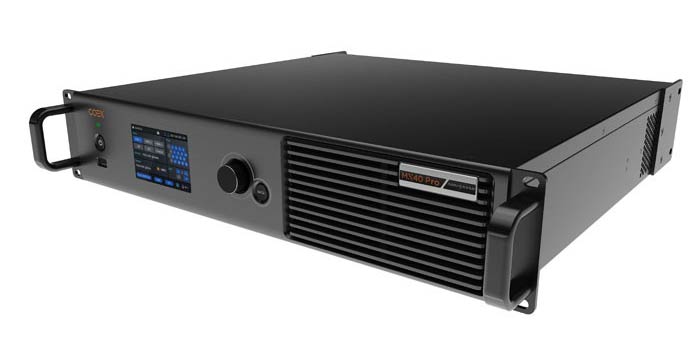

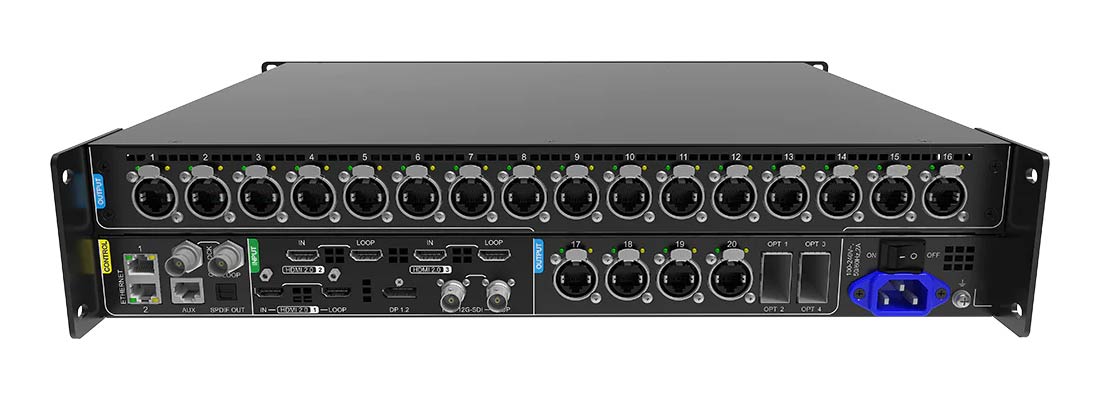

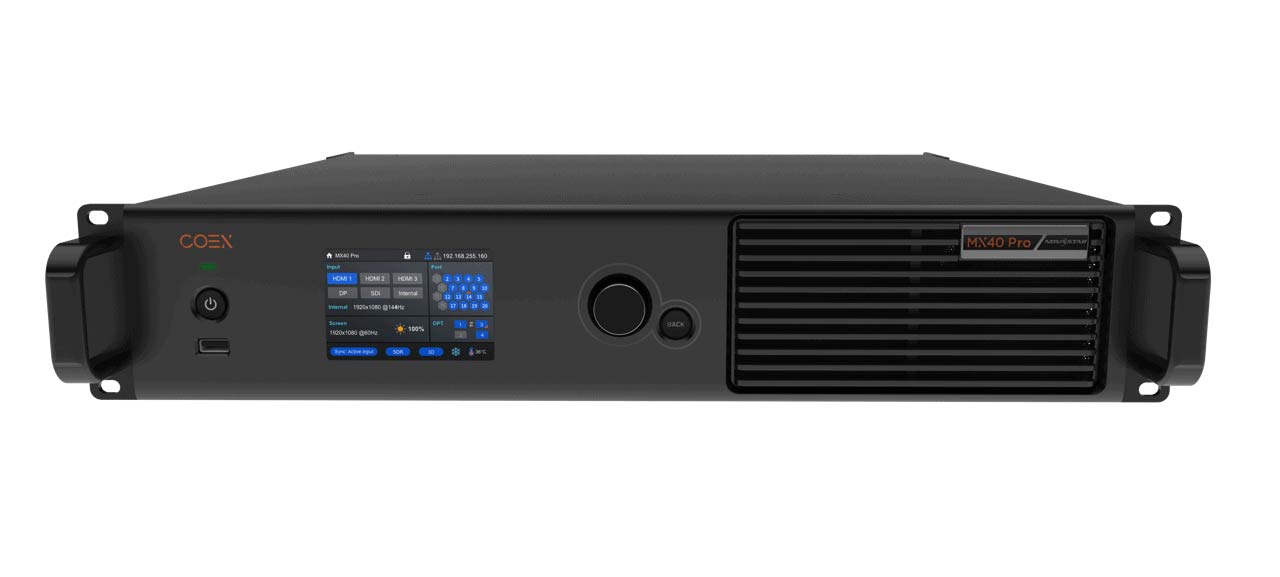

Novastar MX40 PRO
Specyfikacja
| BUILT-IN SCALING: | Yes, via windowing |
| INPUTS: | 4 – HDMI 2.0 (2x), DP 1.2 (1x), 12G-SDI (1x) |
| OUTPUTS: | LED OUTPUTS – 20 |
| GENLOCK: | Yes |
| IMAGE MOSAIC: | Yes |
| VIDEO LOOP: YES | Yes |
| BUILT IN FIBER SLOTS: | YES (4: 2 primary, 2 backup) |
| WINDOWS/LAYERS: | 3 layers |
| 3D: | Yes |
| CONTROL: | ETHERNET (2x ports) |
| LOADING CAPACITY: | MAX PIXELS PER LED OUTPUT: 650,000 pixels (8-bit), 480,000 pixels (10-bit), or 320,000 pixels (12-bit) |
| TOTAL PIXELS: | MAXIMUM INPUT RESOLUTION: 4096 x 2160 @ 60Hz |
