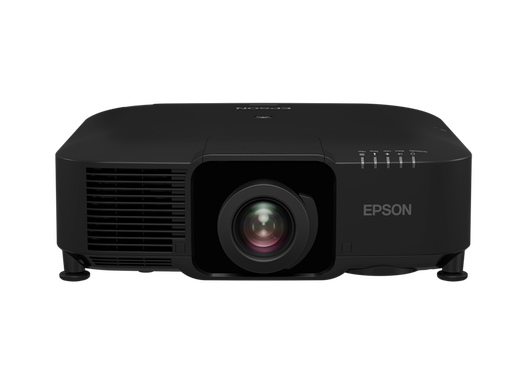

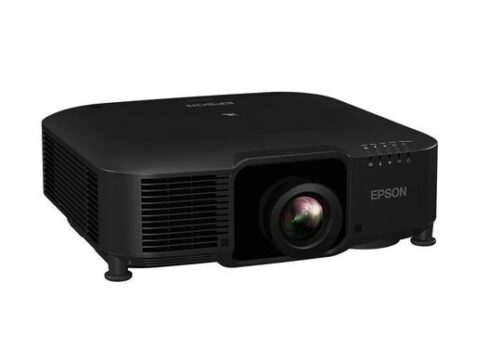

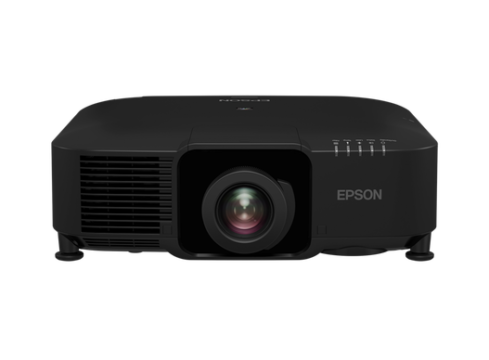

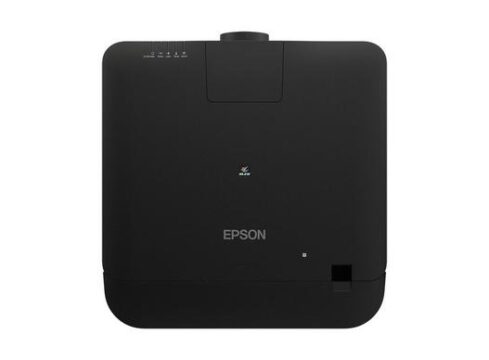

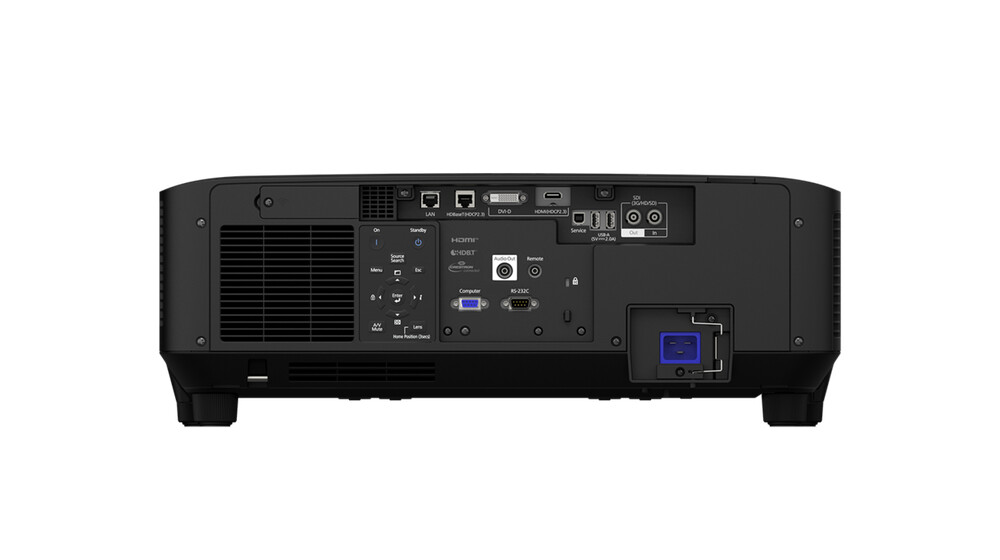

Epson EB-PU2220B

Premium large venue laser projector with 4K enhancement

Experience the power and flexibility of the EB-PU2220B 20,000-lumen large venue laser projector. Featuring a sleek, black cabinet, this premium laser projector is optimized for live events with 3G-SDI input and output to accommodate daisy-chaining and long cable runs, plus a mechanical shutter to protect the projector during laser light shows.

The EB-PU2220B produces ultra-bright, 20,000-lumen images and uses a 20,000-hour virtually maintenance-free laser light source. It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation. The projector pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setups, such as built-in NFC functionality3, and the optional attachable PixAlignTM camera to streamline multi-projector setups.

  • 20,000 lumens of equal white and color brightness
  • WUXGA with 4K Enhancement
  • 20,000-hour virtually maintenance-free laser light source

See full specification.

Specification

Technology 3LCD
Resolution WUXGA, 1920 x 1200
Aspect ratio 16:10
Brightness ( lumens) 15
Contrast ratio 2,500,000 : 1
Light source Laser
Light source lifetime (hrs) 20000
Max. power consumption (W) 1,024
Noise level (dB) 40
Weight (kg) 24.4



Available lenses :



Model Projection ratio
Epson ELPLX02 0.35
Epson ELPLU03S 0.48-0.57
Epson ELPLW08 0.86 – 1.12
Epson ELPLW06 1.19 – 1.63
Epson ELPLM10 2.43 – 3.71
Epson ELPLM11 3.54 – 5.41
