Infiled MC MKII P3.9

INFiLED MC Series – High-Performance Outdoor LED Displays That Make an Impact

Introducing the INFiLED MC Series – a cutting-edge line of outdoor LED displays engineered to deliver stunning visuals in any environment. Designed for events, advertising, and architectural installations, the MC Series combines durability with exceptional image quality to captivate any audience.

Key Features of the MC Series:

✅ Ultra-High Brightness – Perfectly visible even in direct sunlight, ensuring your content shines in all conditions.

✅ Modular & Lightweight Design – Fast installation and flexible configurations with easy-to-handle panel structures.

✅ All-Weather Durability – IP65/IP66-rated protection guarantees reliable performance in rain, dust, heat, and more.

✅ Vivid, True-to-Life Colors – Exceptional contrast and color accuracy provide dynamic visuals for both video and static content.

✅ Energy Efficient – Built with advanced components that reduce power consumption and operating costs over time.

Specification

Model Infiled MC (mk2) P5.9
LED lamps SMD1818 full black
Pixel density (1m.) 256×256

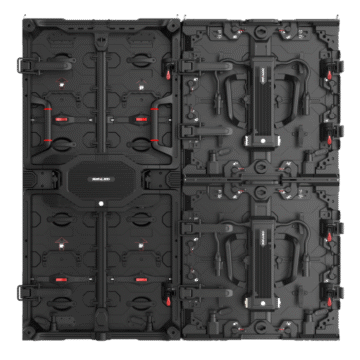

Cabinet size (cm) 100×50 / 50×50
Brightness (cd/m.) 4000
Refresh rate (Hz) 3840
Grey level (bit) 16
Cubes / corners yes
Cabinet weight – 50x50cm, (kg) 9

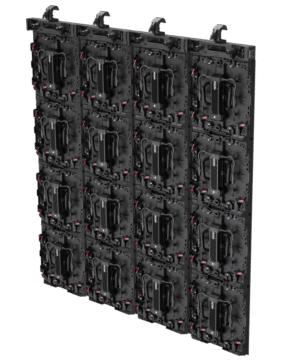

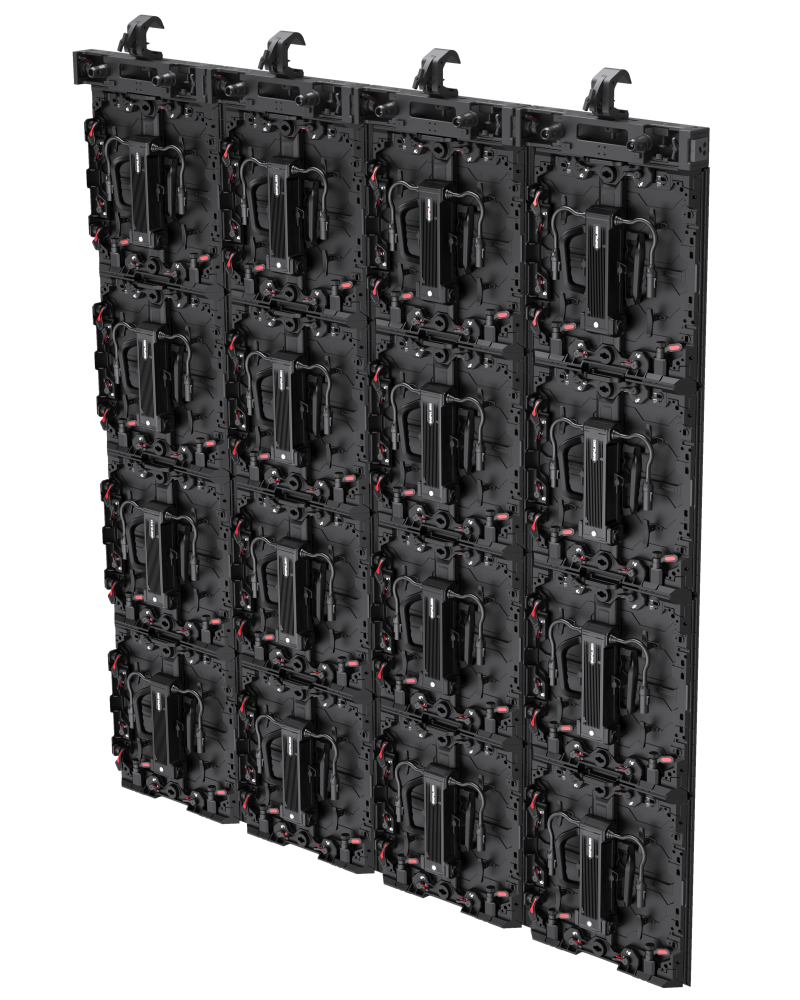

Maximum hanging capacity – 50x50cm tiles, straight 20
Max energy consumption for 1 cabinet (W) 360
Average energy consumption for one cabinet (W) 120
Cabinet thickness (cm) 82
Material Magnesium
Environment Outdoor
Resistance / ingress protection IP65
Curvable (degrees) NO

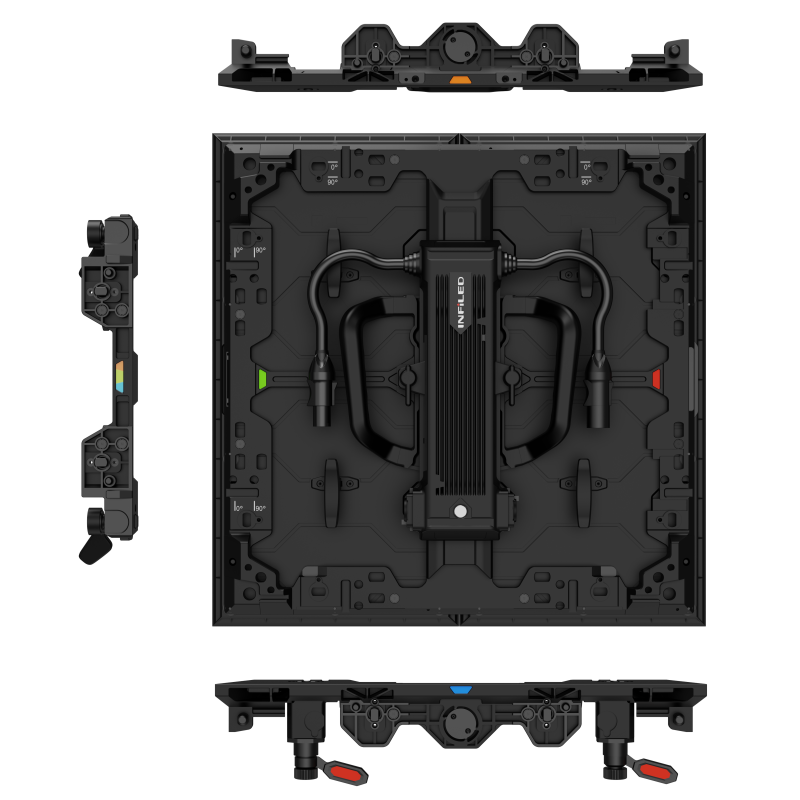

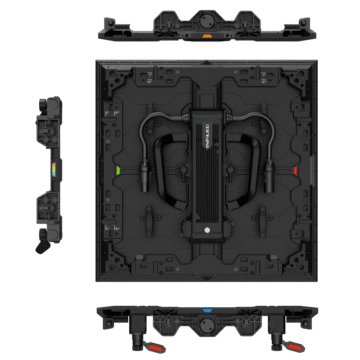

Maintenance Rear
Magnetic modules Yes (with locks)
Download the specification PDF file of Infiled AR PRO (mk2) P3.9
Download configuration files for Infiled AR PRO (mk2) P3.9



Infield AR MKII P3.9 main features:
● resolution: 256pix / 1m
● magnetic modules with locks
● tool free maintenance
● weight: 36kg
● cabinets sizes: 50x50cm

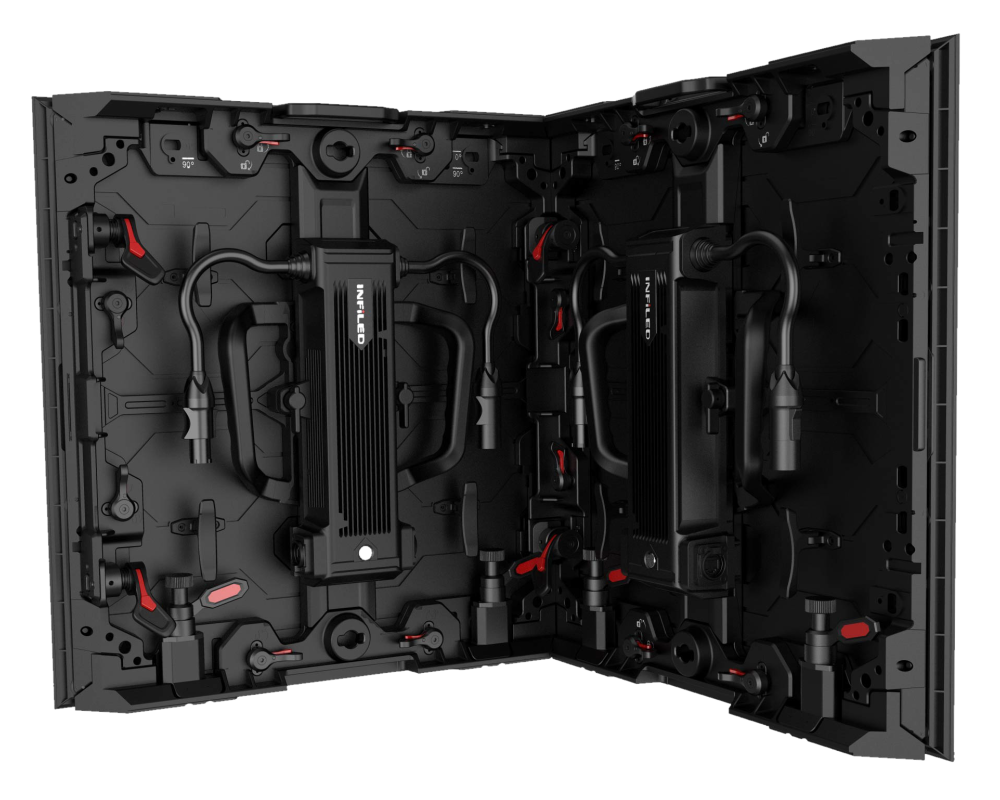

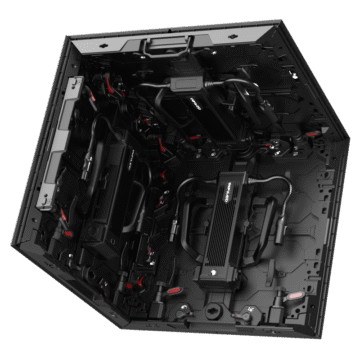

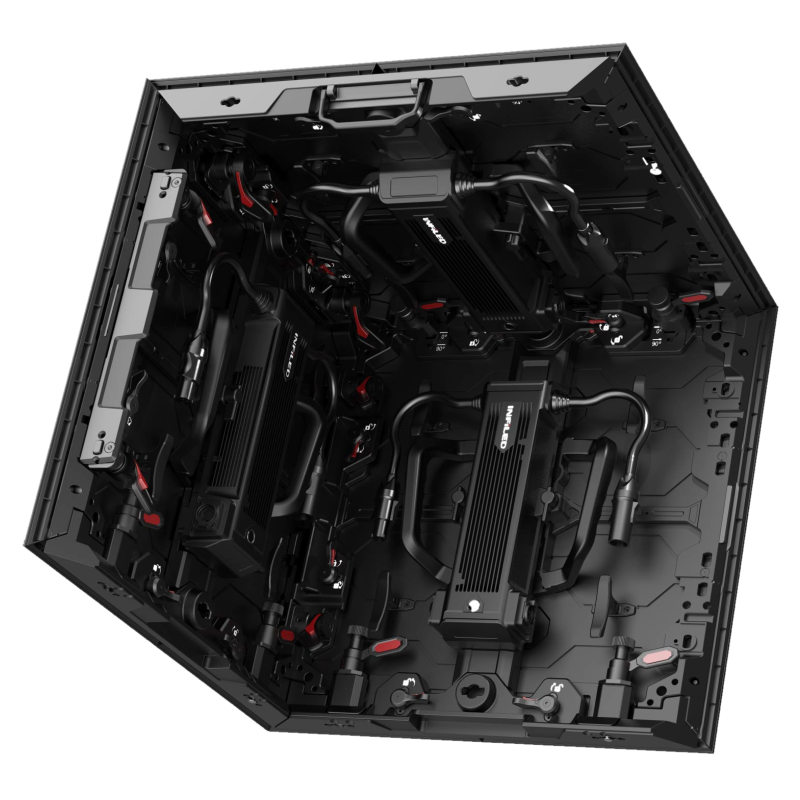

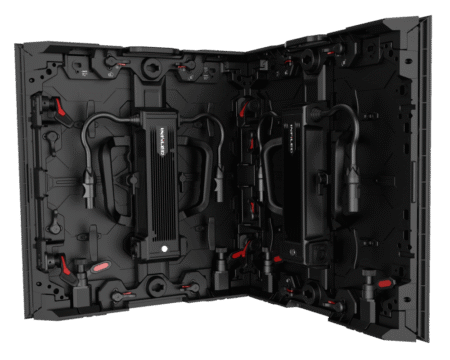

● 90 degrees / corner / cube
