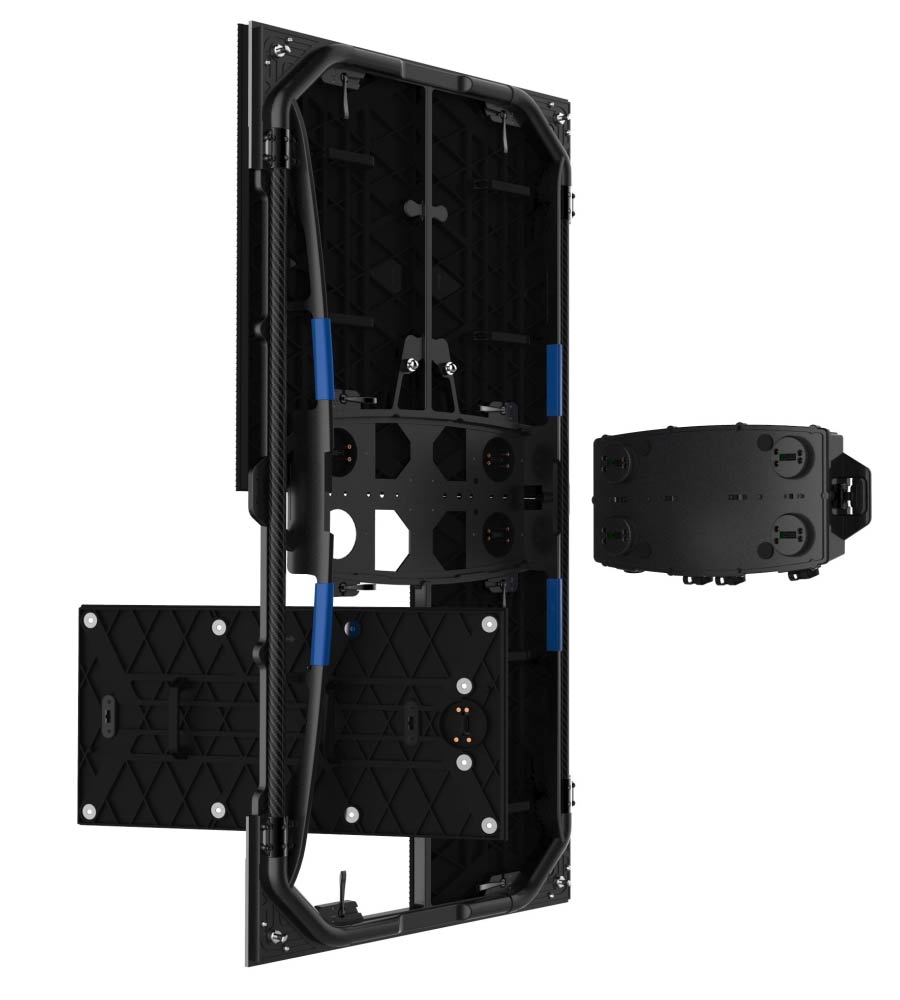

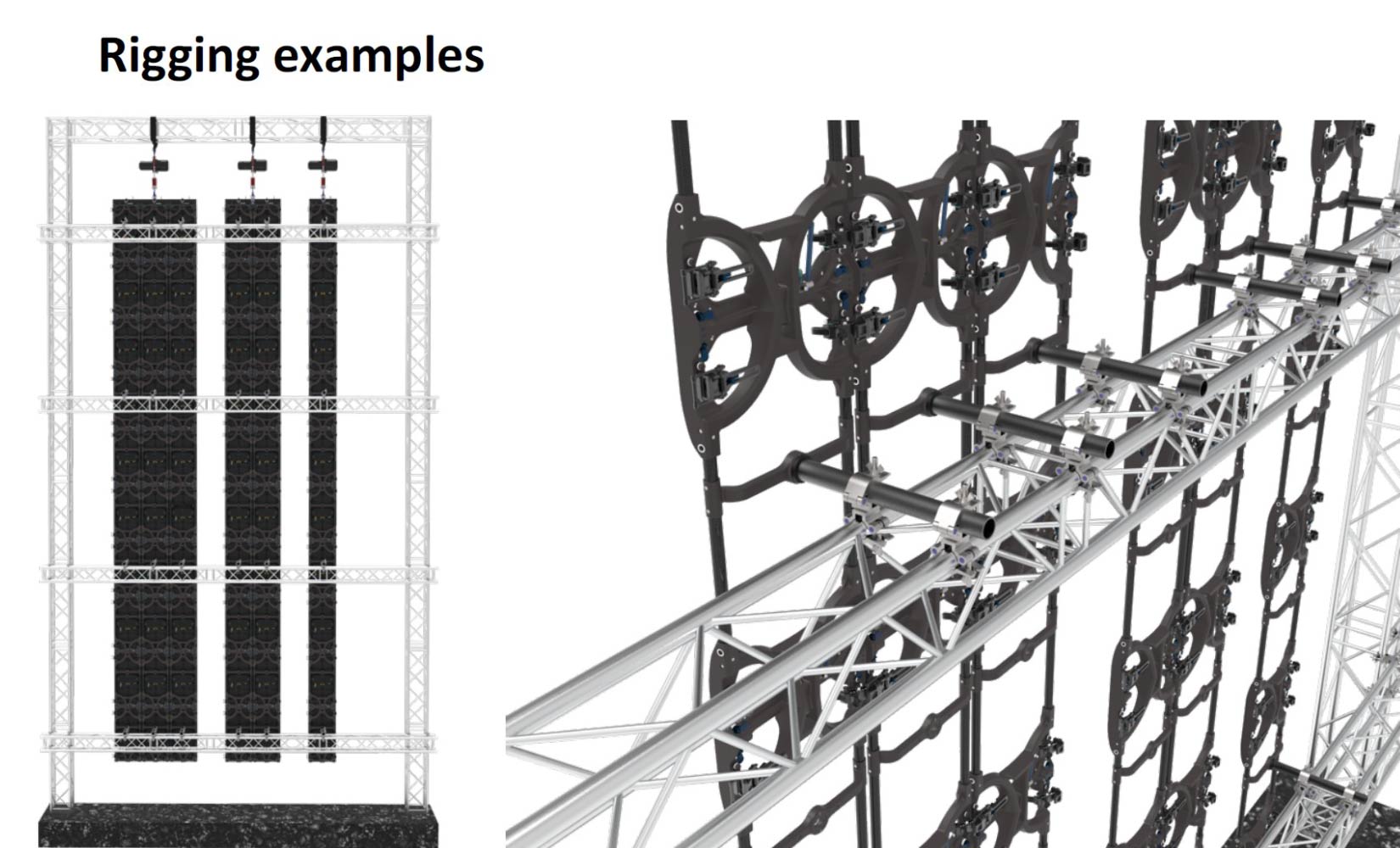

Unilumin Upad H P5.9 – display specially designed for the highest quality outdoor projects and the most demanding users. Lightweight and slim design – 40% less weight than the conventional panel, which saves rigging, labor, and transportation costs. Quick maintenance and a tool-free concept make this product reliable and always ready to work with 100% quality assurance. 15 seconds to replace a module and 10 seconds to replace a central unit, significantly help solve field issues. The optional touring system provides a high-quality wind-bracing solution.
- LED screens
- Image processing
- Projectors
- Media servers
- Projection screens
- LCD screens
- Power management systems
- Multimedia accesories
Unilumin UpadH P5.9
Specification
Model | UpadH P5.9 |
LED lamps | SMD1921 |
Pixel density (m2) | 168×168 |
Cabinet size (cm) | 50×100 |
Brightness (cd/m.) | 5000 |
Refresh rate (Hz) | 3840 |
Grey level (bit) | 12 |
Cabinet weight (kg) | 11,2 |
Cabinet weight in touring frame system (kg) | 20,5 |
Max energy consumption for 1 cabinet (W) | 480 |
Average energy consumption for one cabinet (W) | 160 |
Cabinet thickness (cm) | 7,53 |
Material | Aluminum & Carbon Fiber |
Environment | Outdoor |
Resistance / ingress protection | IP65 |
Curvable (degrees) | -15 / ? 15 |
Maintenance | Rear |
Magnetic modules | Yes (with locks) |
Download specification pdf file of UpadHP 5.9 | |
Download configuration files for UpadH P5.9 |
Unilumin UpadH P5.9 ? main features:
● resolution 1sqm: 168pix / 168pix
● resolution of cabinet 50x100cm: 84 x 168 pix

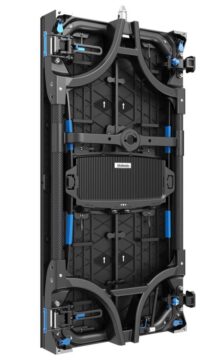

● rear service without any tools
● magnetic modules with special locks

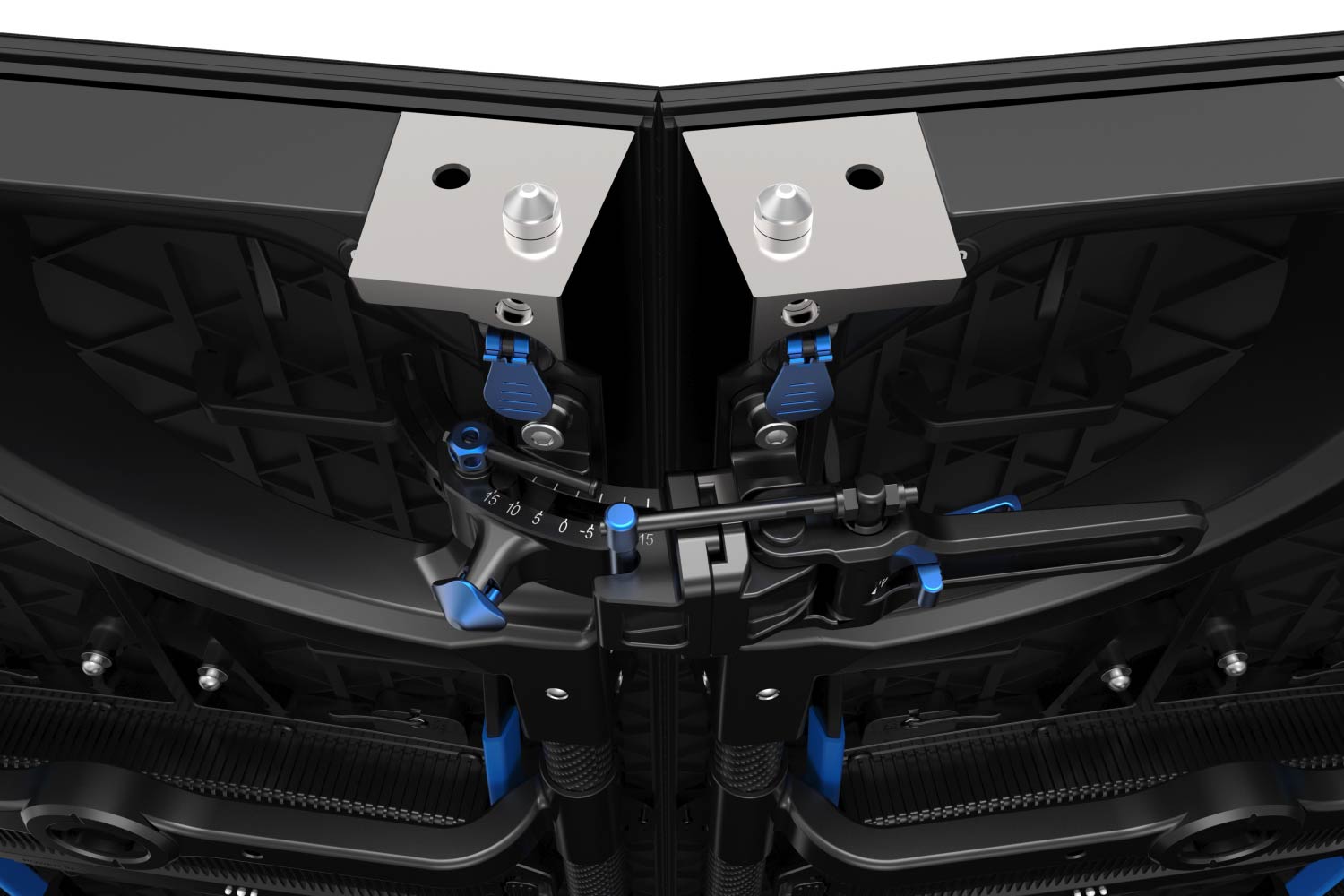

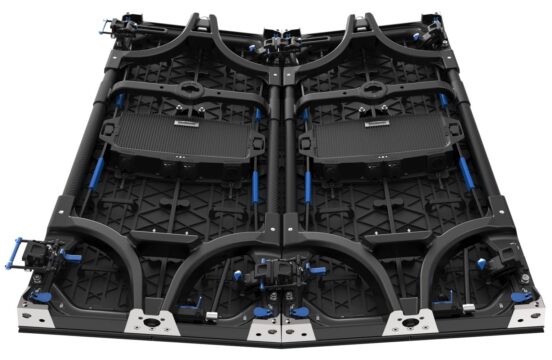

● curvable: -15? / +15?
● fast electronic replacement
● weight: 22,5kg / 1sqm without touring frame

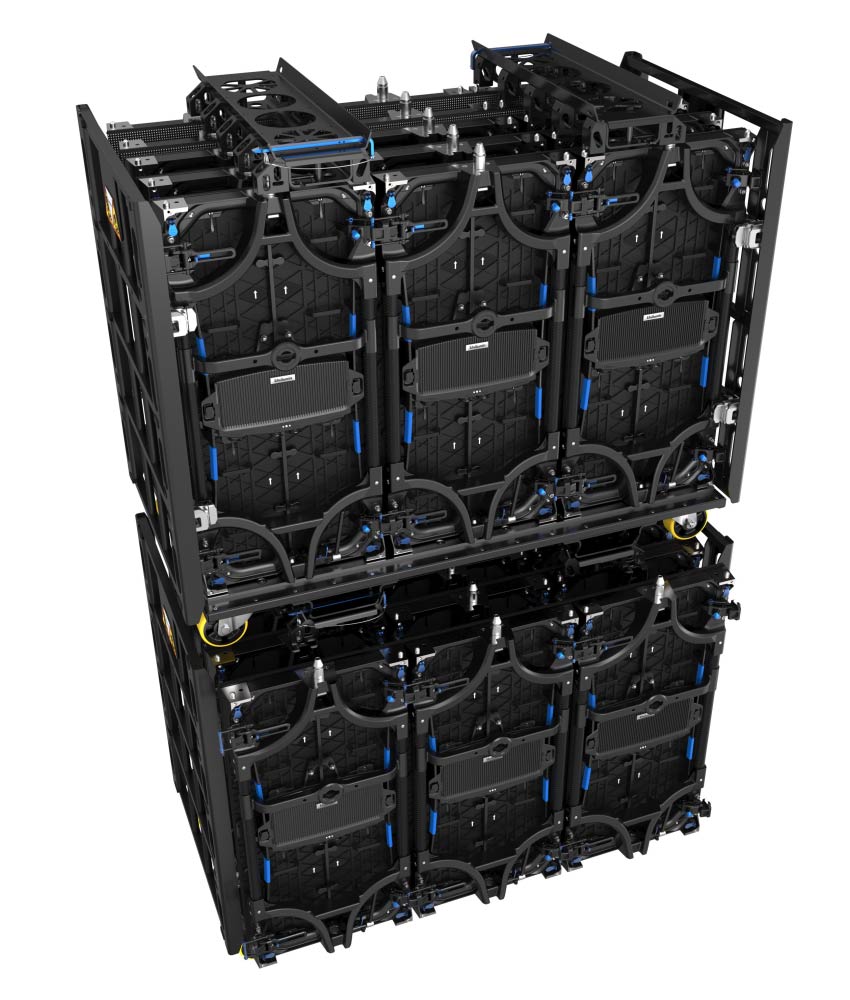

● weight: 41kg / 1sqm in the touring frame
