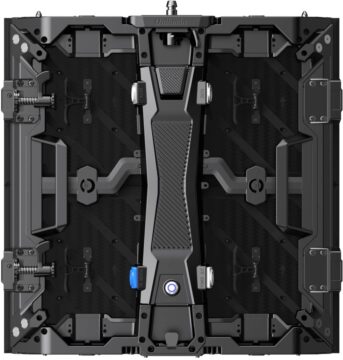

Unilumin UpadIV -C P1.9 – a high-end indoor screen designed specifically to create cubes with LED screen.
The universal size of the cabinets (50cmx50cm) and the ability to curve the LED screen inwards and outwards allow for the construction of a diverse and non-standard multimedia scenography using various shapes of the LED screen.
Compatible with UpadIV PRO P1.9 and UpadIV-S P1.9 – the same batch.
Specification
| Model | UpadIV-C P2.6 |
| LED lamps | SMD1212 black |
| Pixel density (1m) | 512 x 512 |
| Cabinet size (cm) | 50×50 |
| Brightness (cd/m) | 1000 |
| Refresh rate (Hz) | 3840 |
| Grey level (bit) | 12 |
| Cabinet weight (kg) | 8 |
| Max energy consumption for 1 cabinet (W) | 120 |
| Average energy consumption for one cabinet (W) | 40 |
| Cabinet thickness (cm) | 7 |
| Material | Aluminium |
| Environment | Indoor |
| Resistance / ingress protection | IP30 |
| Curvable (degrees) | NO |
| Corner / cube design | Yes, 90 degrees |
| Maintenance | Front / Rear |
| Magnetic modules | Yes |
| Download the specification pdf file of UpadIV-C | |
| Download configuration files for UpadIV-C |
Unilumin UpadIV PRO P1.9 main features:
● resolution 1sqm: 512pix / 512pix
● resolution of cabinet: 256 x 256 pix
● front and rear service with a special tool
● magnetic modules
● fast power supply replacement
● cube design functionality
● replaceable locks
● compatible with UpadIV-PRO
● compatible with UpadIV-S (XS series flex tiles)
