Dicolor UT390 P3.9/7.8

Dicolor UT390 – transparent and creative LED screen.

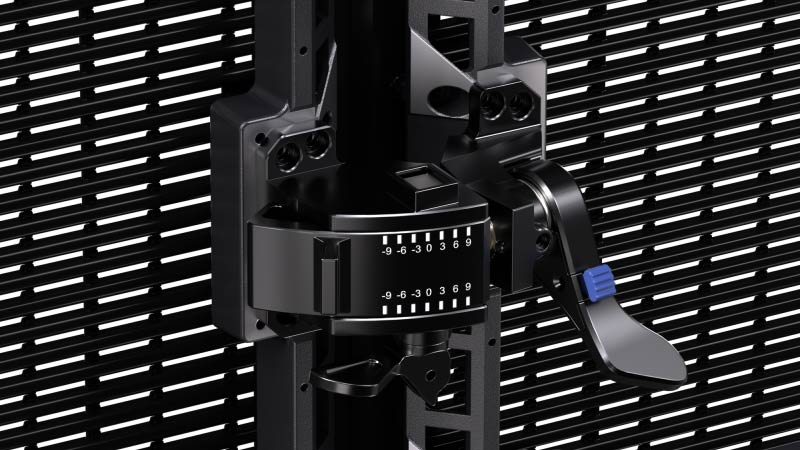

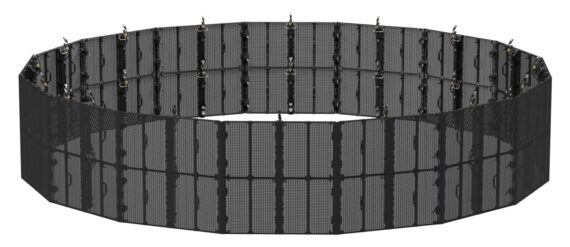

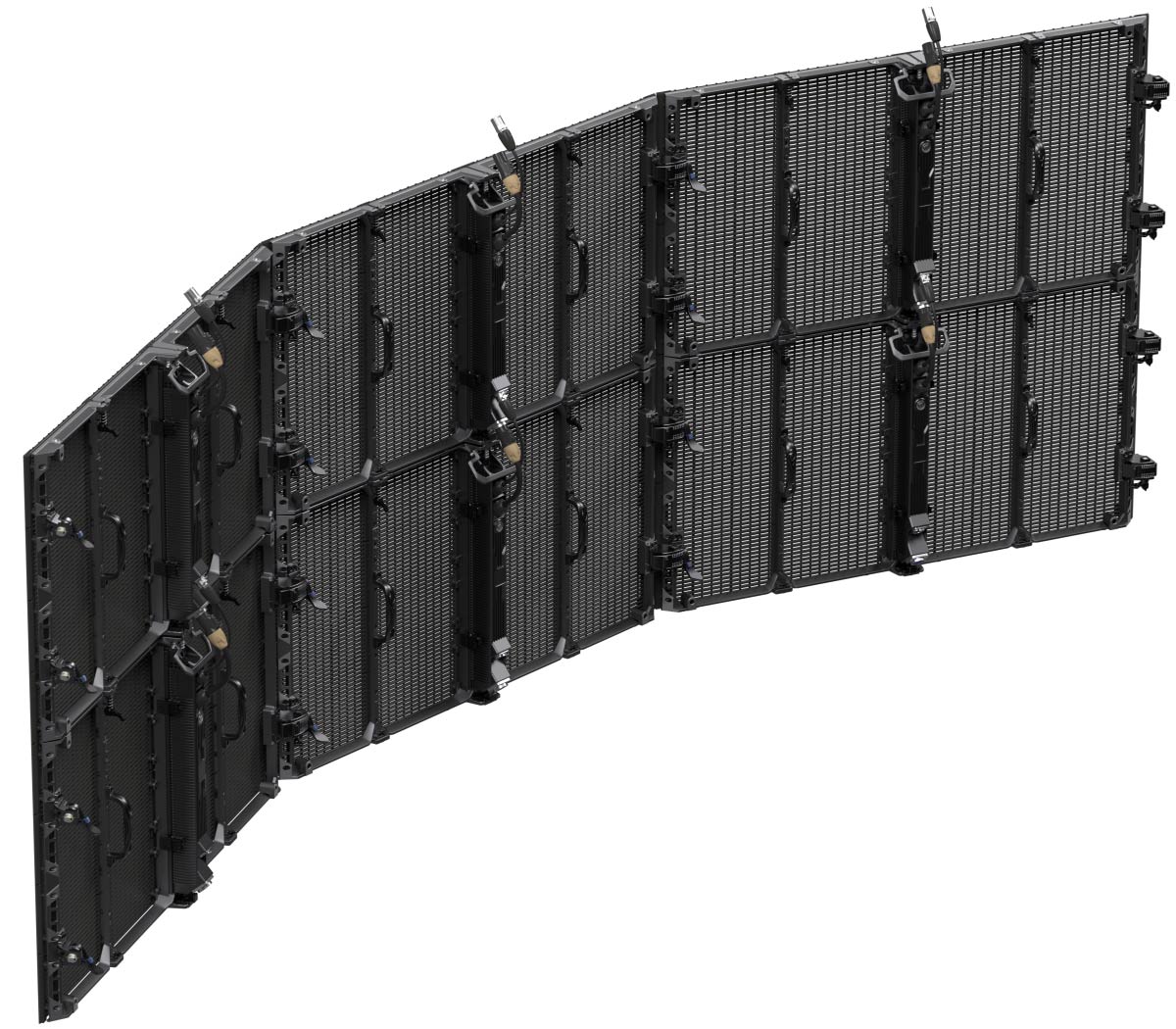

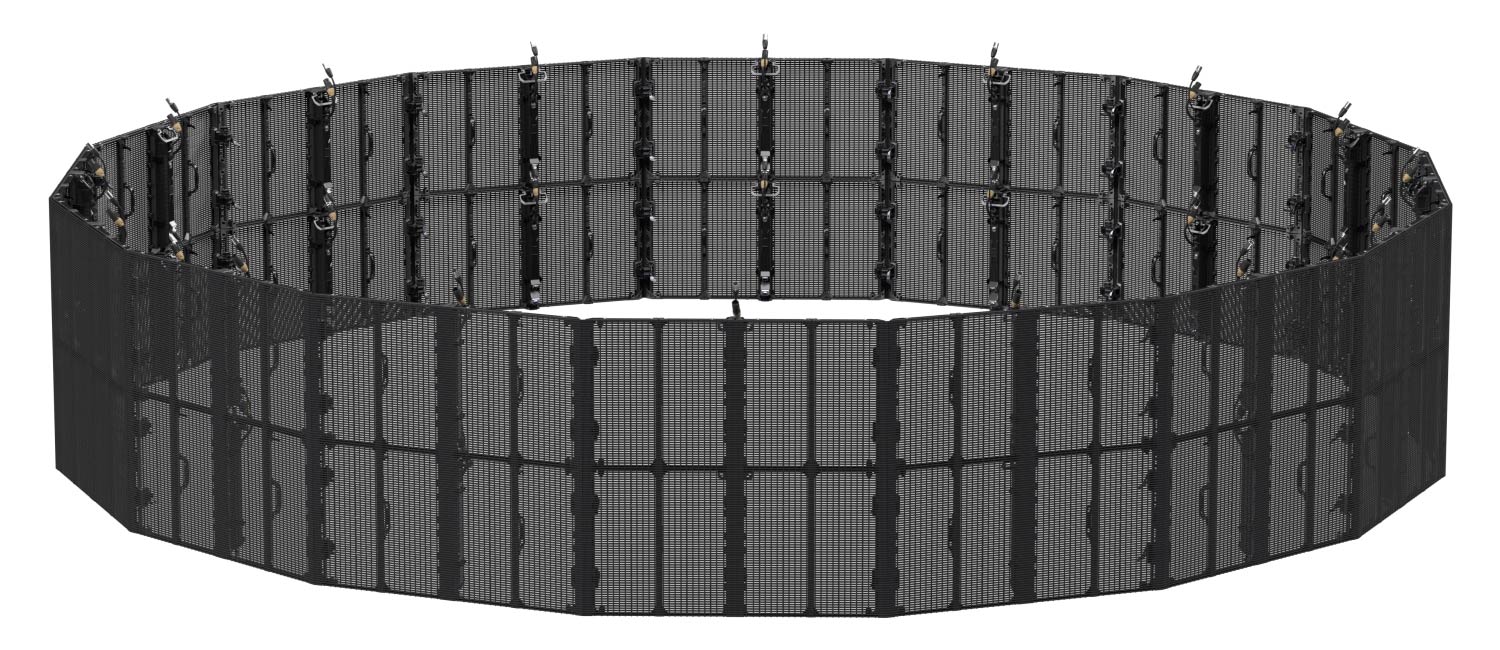

The product creates unique stage and backdrop effects and offers the designers a flexible solution with high image quality (3.9mm horizontal and 7.8mm vertical pixel pitch) and unlimited creative freedom. This LED reaches up to 40% transparency. Tiles can be mounted in an arc in the range of -9/-6/-3/3/6/9 degrees or as a corner tiles. The protection level reaches IP54 which fully meet the requirements of both: indoor and outdoor application.

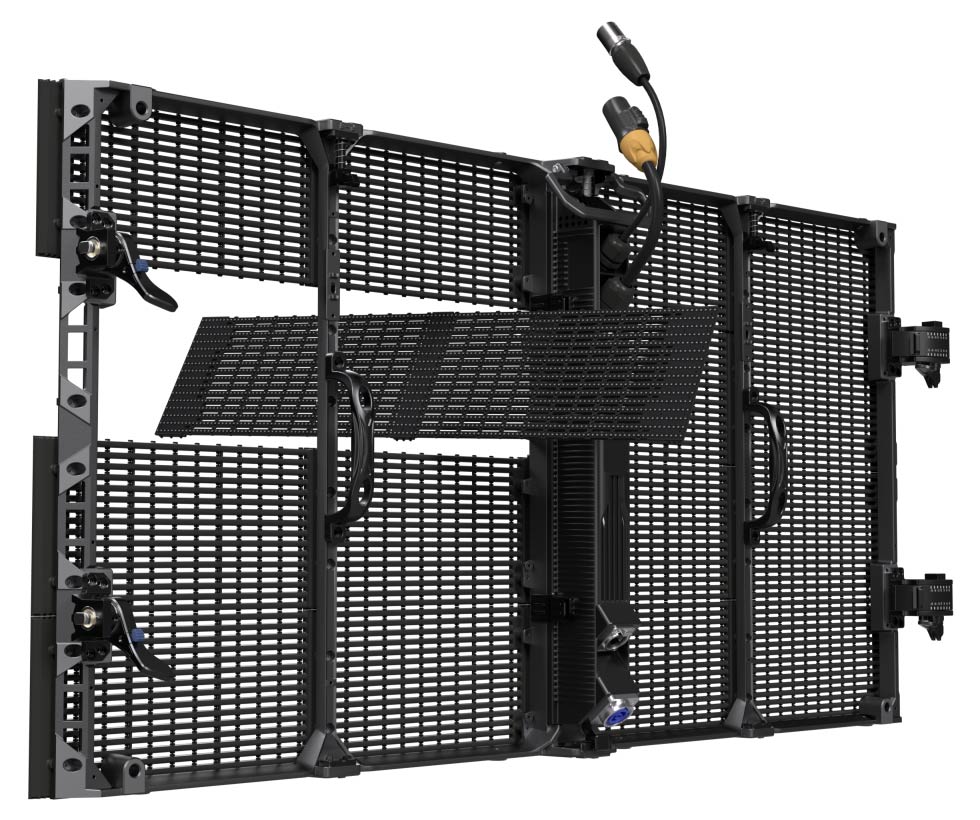

Custom-made back tile covers allow us to resign from the screen transparency described as a “see through” function, making UT390 an ultra-light classic LED display (the weight of one sqm is only 13kg).
All unique features make UT390 not only an extremely creative LED screen but also a very functional and user-friendly display.



Specification

Model UT390
LED lamps SMD1921
Pixel density (1m) 256 x 128
Cabinet size (cm) 100×50
Brightness (cd/m) 4500
Refresh rate (Hz) 3840
Grey level (bit) 14
Cabinet weight (kg) 6,5
Max energy consumption for 1 cabinet (W) 272
Average energy consumption for one cabinet (W) 90
Max rigging (8 times safety ratio)
19 tiles 100x50cm
Material Aluminium
Environment Outdoor
Resistance / ingress protection IP54
Curvable (degrees) -9 / +9

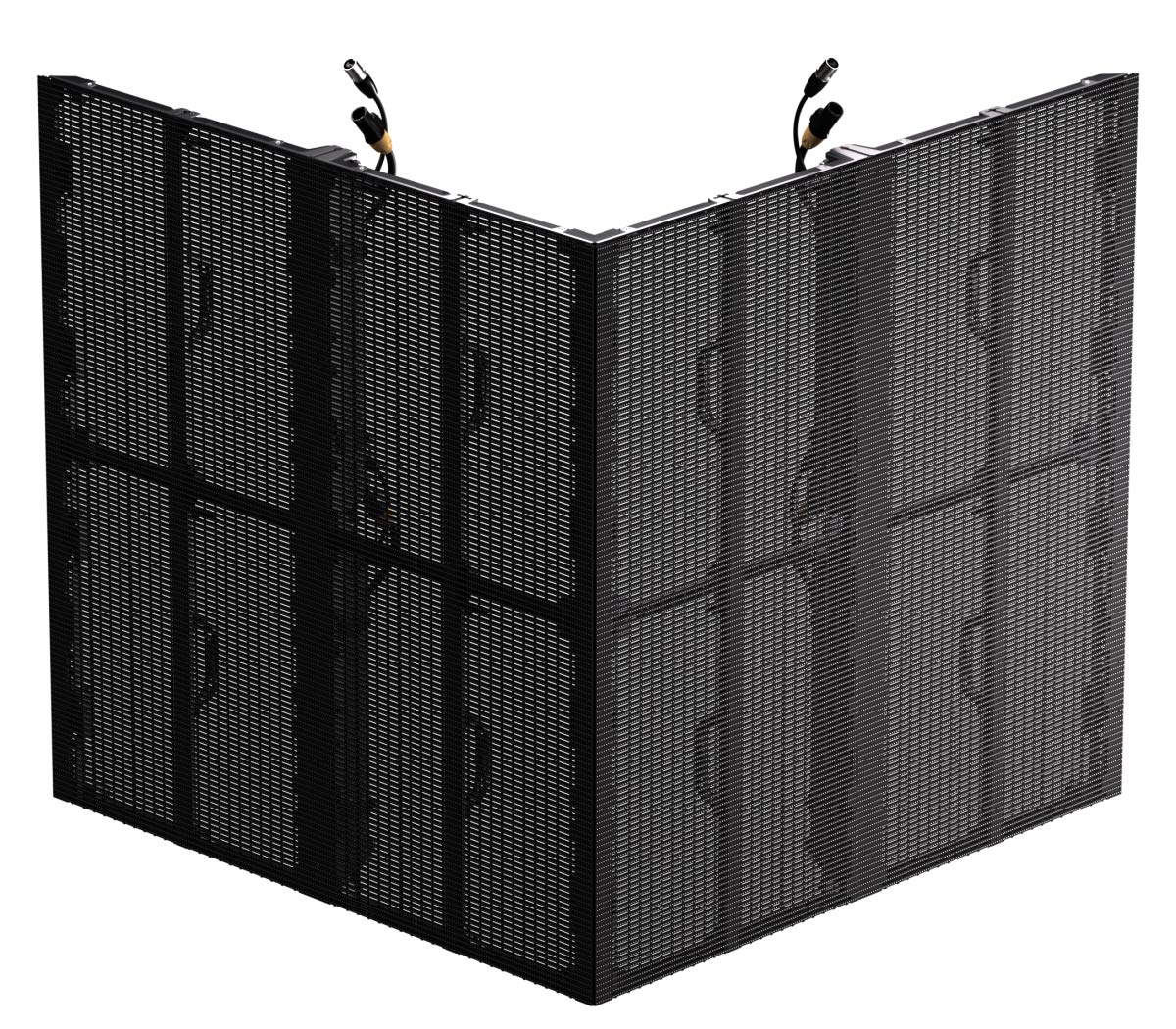

Corners Yes, 90 degrees
Maintenance Rear
Transparency 40%
Download the specification pdf file of Dicolor UT390
Download configuration files for Dicolor UT390



Dicolor UT390 – features:
● resolution 1sqm: 256pix (horizontally) / 128pix (vertically)
● resolution of cabinet 100x50cm: 256pix x 64pix
● 40% of the transparency
● indoor and outdoor
● weight: 13kg / 1sqm
● user-friendly design
