Novastar MX6000 PRO

The MX6000 Pro is a large professional 8K LED display controller from NovaStar, designed as part of the COEX control system series. Its remarkable features include 12-bit color depth, 360 Hz capability, real-time multi-screen scaling, 0-frame latency, and HDR supportability, providing precise brightness control, true-to-life color fidelity, and excellent image quality. Its card-based modular design is specifically tailored for future LED displays, allowing for flexible input and output card configurations that are stable and easy to maintain. With a compact 6U size, it supports up to 32x 4K or 8x 8K video inputs, with a maximum load capacity of 141 million pixels, making it ideal for large-screen configurations. The MX6000 Pro offers a wide range of options with up to six different input cards supporting 8K, 4K, and VoIP. For output, it supports two types of output cards: 4x 10G fiber and 1x 40G fiber. These cards can be configured flexibly to accommodate either 1G or 5G bandwidth for the control system, catering to different requirements. Additionally, it supports seamless backup and automatic switching between devices and cards. In case of any malfunction, it promptly switches over while issuing automatic alerts, ensuring stable output on-site. To further enhance the user experience, it is complemented by the advanced control software, VMP, enabling users to have better control and
management capabilities.
The MX6000 Pro offers many advantages such as a highly integrated design, premium image quality, powerful performance, tremendous load capacity, and easy control. It is widely used in rental services for large events, xR/VP studios, large fixed installation applications, TV production, e-sports events, exhibition halls, and other application scenarios.

Specyfikacja

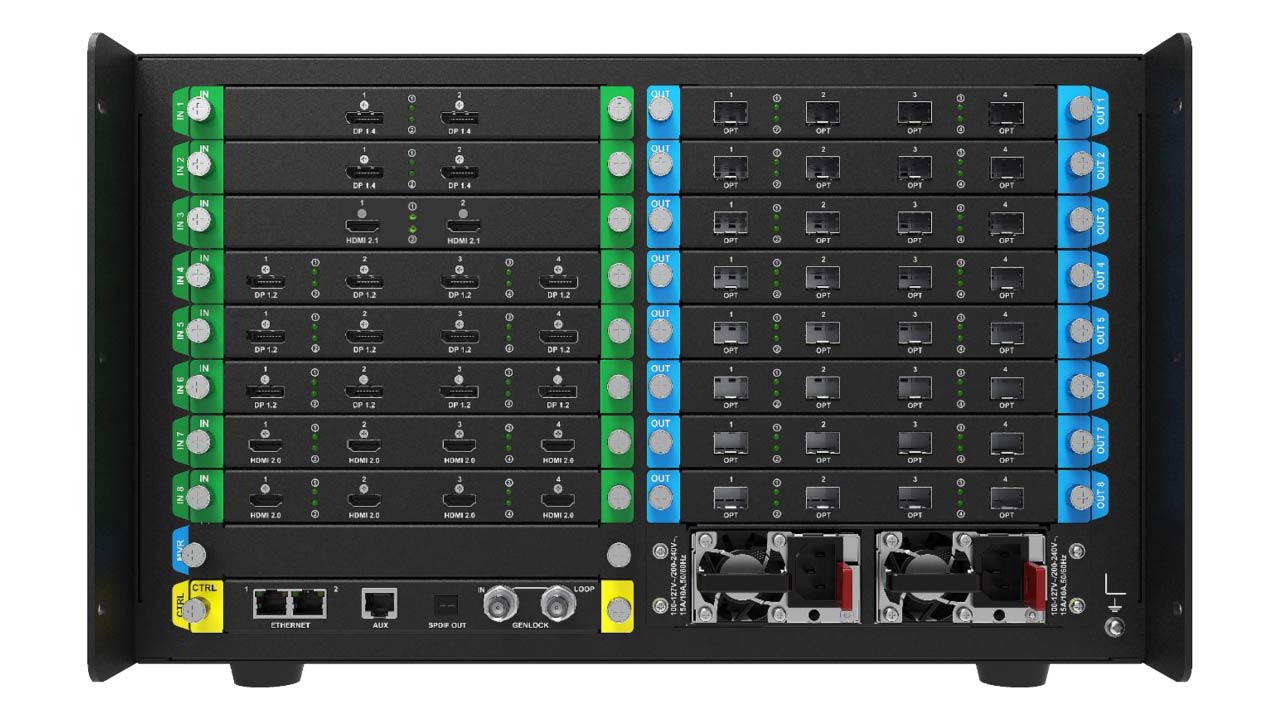

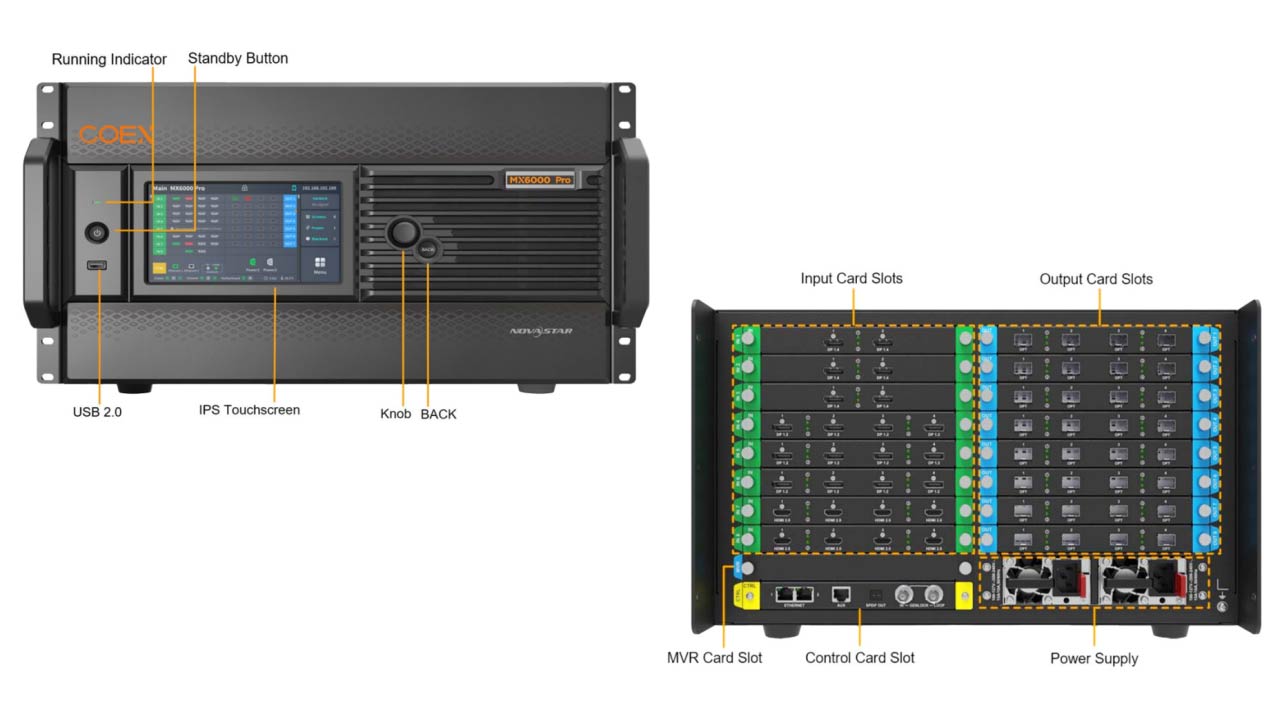

Inputs and Outputs:

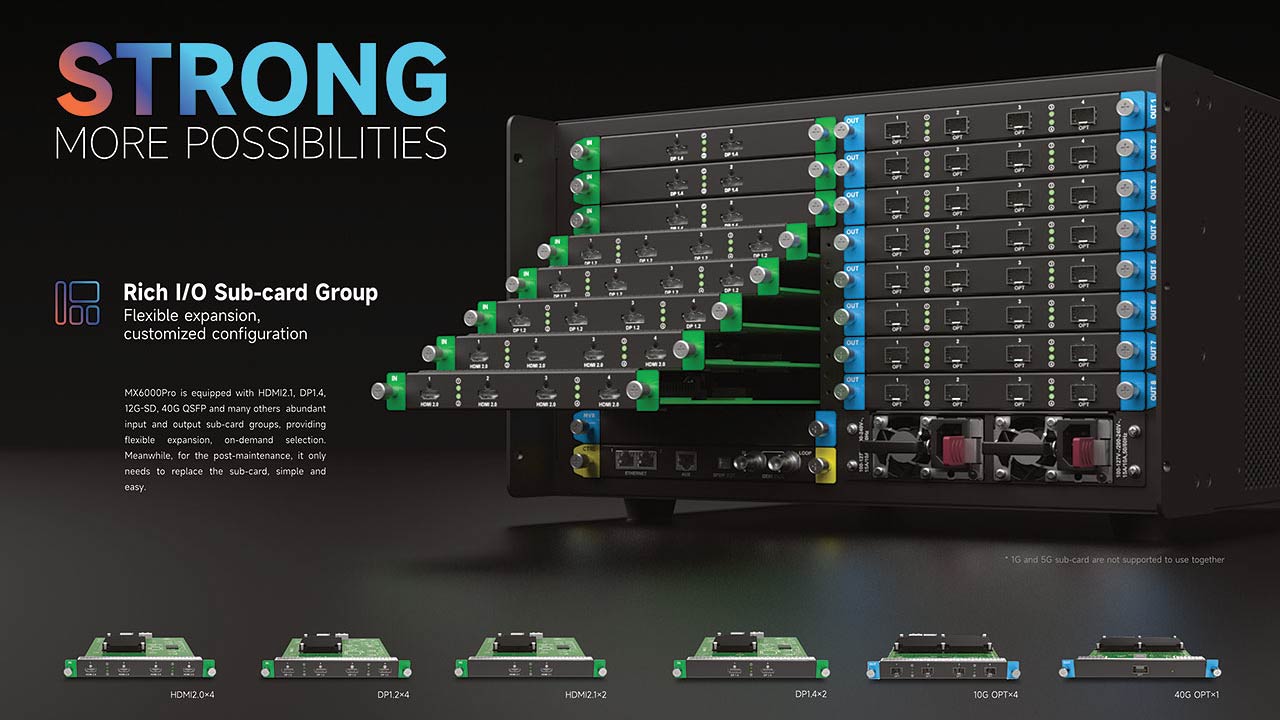

– 8x input card slots, users may choose input cards of the following 6 types:
• 4K input cards: 4x HDMI 2.0, 4x DP1.2, 4x 12G-SDI
• 8K input cards: 2x HDMI 2.1, 2x DP 1.4
• VoIP cards (Video over IP): 1x SMPTE ST 2110 (25G)
– Authentic 12bit video input: 12-bit/10-bit/8-bit supported
– 8x output card slots, users may

• Multi-Layer: A single output card supports up to 4x layers or the entire device supports up to 32x 4K layers. Each layer supports 4 scaling modes: custom, pixel-to-pixel, snap-to-canvas, and fill screen.
• Layer Roaming: Supports cross-card output of layers within the screen.
• Color Replacement: Replace any color in the image with another color without affecting other colors. It is recommended to choose colors with higher saturation for replacement to achieve better outcomes.
• 14Ch Color Correction: Supports precise adjustment to the hue, saturation, and brightness of black and white, and the 12 standard colors derived from the three primary colors (RGB).
• Color Curves: Supports adjustment to the RGBW mapping curves of the screen.
• 3D LUT: Use the 3D LUT file (.cube) with an accuracy of 17×17×17 to adjust the colors of the video source.
• Full-Grayscale Calibration: Work with NovaStar’s high-precision calibration system and the C3200 scientific-grade camera to generate unique calibration coefficients for each grayscale, ensuring uniformity of each grayscale and dramatically improving the image quality.
• 3D: Work with the receiving card that supports 3D function, the 3D emitter and 3D glasses to bring a fascinating and immersive 3D viewing experience.
• HDR: Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards. Support HLG.
• Latency: Different layers can have different latency settings. The minimum processing latency of the LED display controller is reduced to 0- frame (less than 1 ms), achieving low latency without reducing the load. Support additional latency. Users can choose to add zero to two frames of latency.
• Frame Rate Adaptive: Adjusts the display effects for varying frame rates ranging from 23.98 Hz to 360 Hz, ensuring that the max brightness and color temperature remain consistent at different frame rates.
• Shutter Fit: Automatically adjusts the driver IC parameters according to the camera shutter angle to fix problems of black lines, grayscale addition, and grayscale loss during camera shooting in xR scenarios.
• Frame Multiplication
− Frame interpolation: Outputs images that are captured from multiple shooting angles with different backgrounds at the same time. Solid green backgrounds can also be inserted to allow for easy post-production adjustments.
− Frequency multiplication: Supports high frame rates of up to 360 Hz. This feature is to accommodate multi-angle camera shooting to improve the
