The Infiled AR PRO (MK2) P5.9 is a high-performance outdoor LED display engineered for demanding live productions. With its robust cabinet design and excellent image performance, the system is well suited for concert stages, touring productions, festivals and large-scale outdoor events.

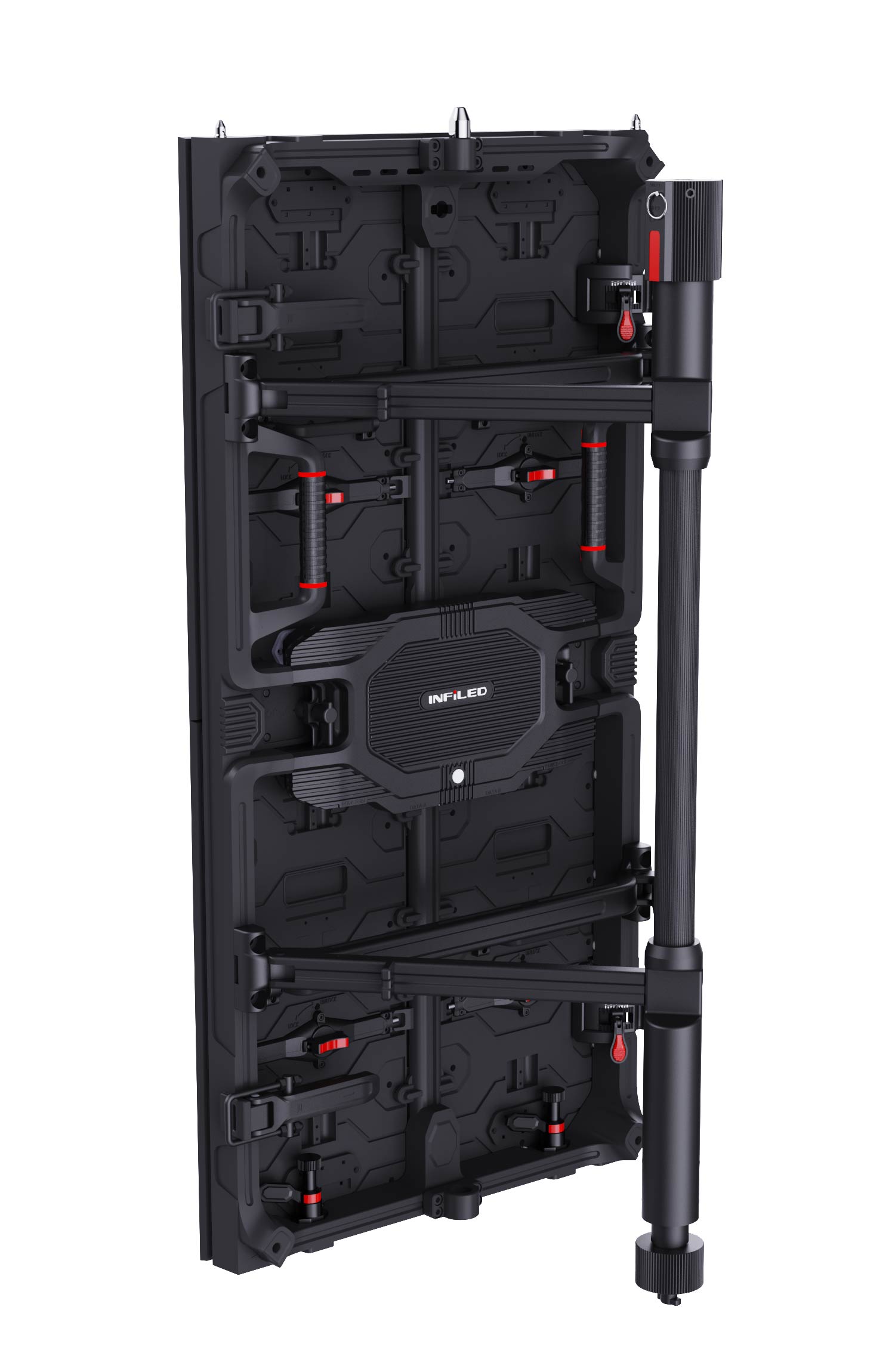

The cabinets are lightweight and easy to handle. At the same time, the system remains extremely robust. As a result, the display can be installed quickly while maintaining high structural stability. This balance allows fast installation while maintaining high structural stability. In addition, the system includes a dedicated transport dolly and a reinforced mounting bracket. These elements improve mobility and support safe operation in strong wind conditions.
Safe and Efficient Installation

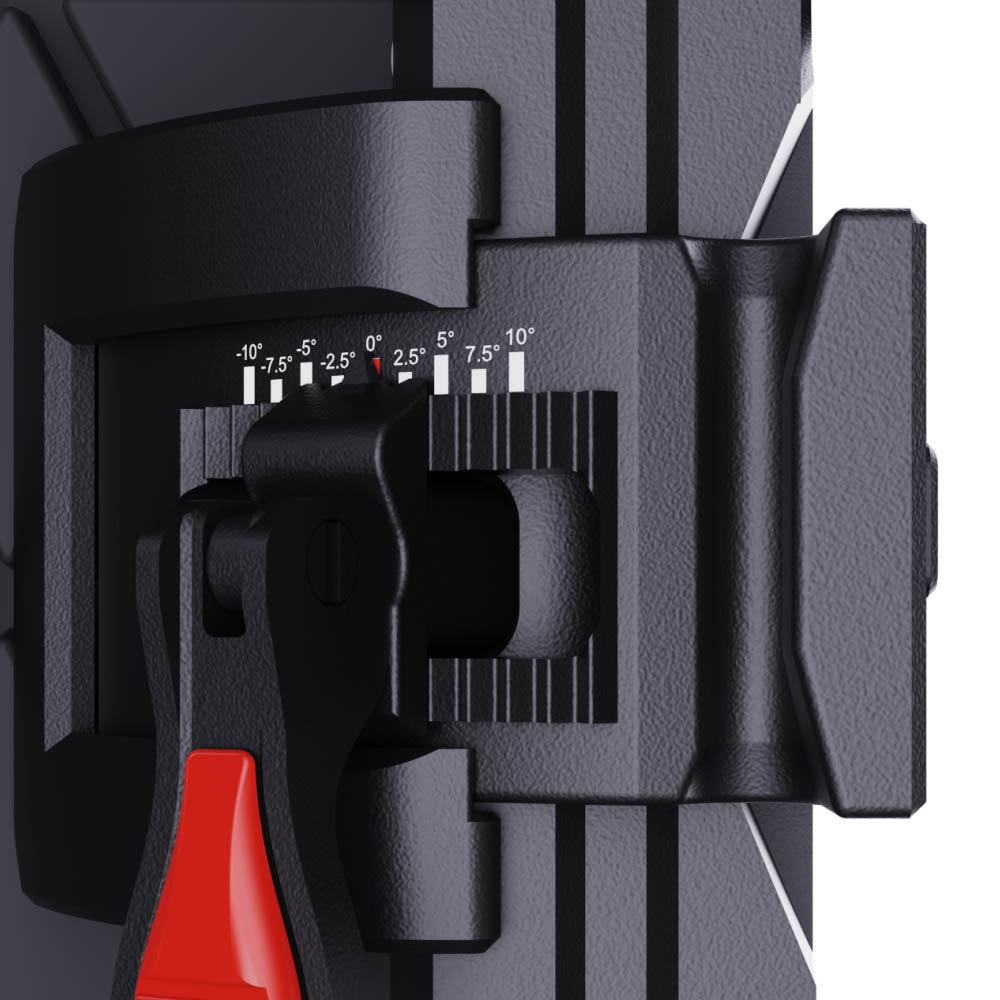

The AR PRO (MK2) introduces improved flexibility. The system allows technicians to build curved LED screens with multiple adjustable angles.

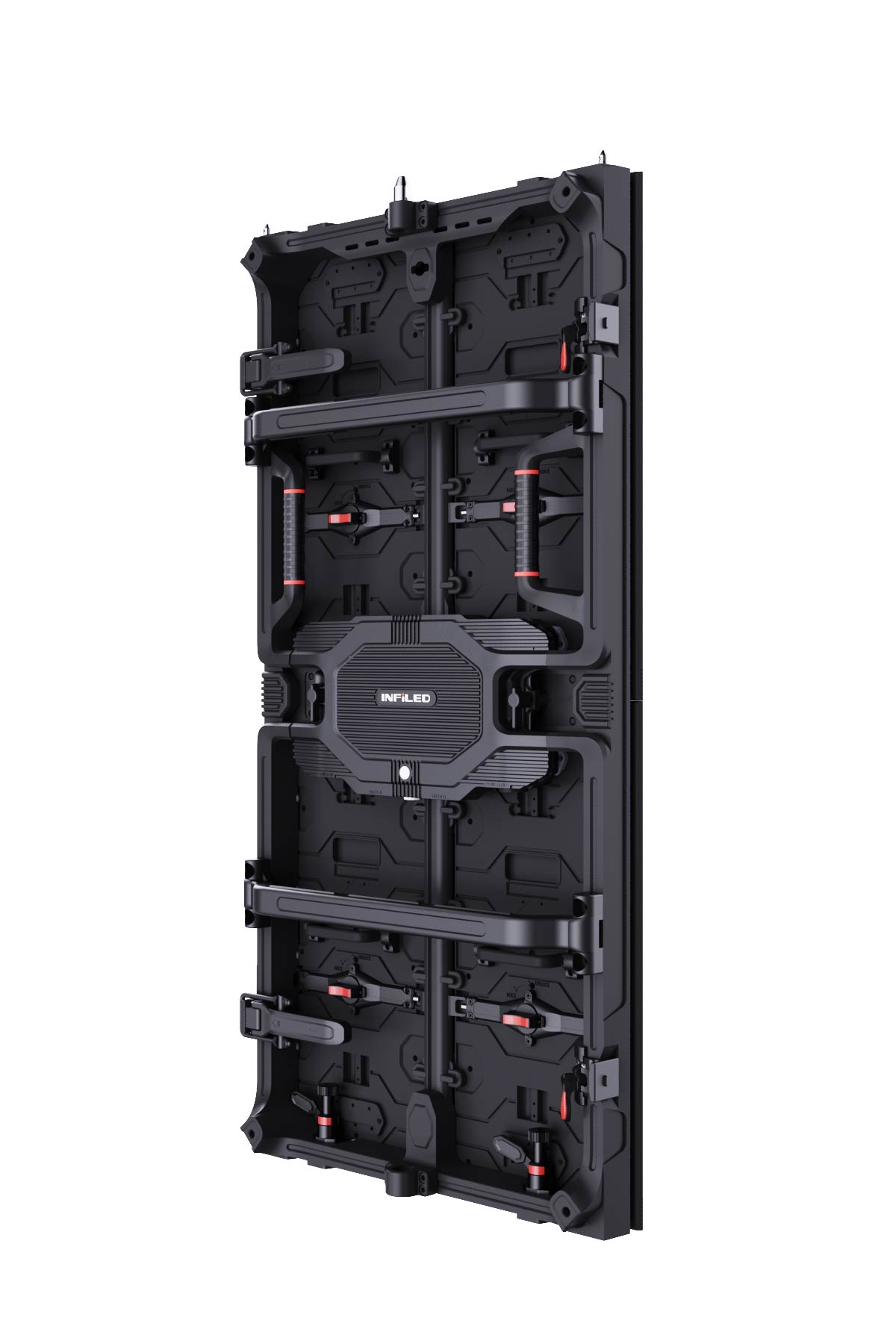

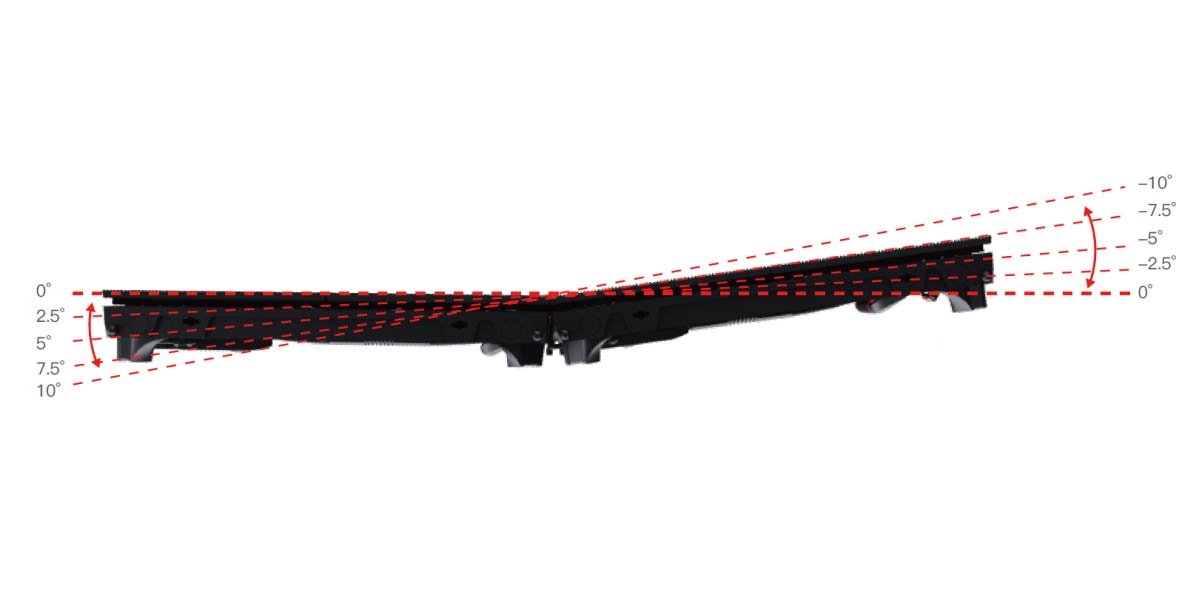

Available angles include: 0°/ ±2.5°/ ±5°/ ±7.5°/ ±10° This flexibility makes it possible to create both concave and convex LED walls. As a result, the system supports creative stage designs and modern multimedia scenography. The cabinet uses a magnesium alloy frame, which combines low weight with high structural rigidity. This construction improves handling during installation and reduces the overall load of large LED builds. The rear cabinet structure features an industrial design with optimized ventilation geometry, supporting efficient heat dissipation during operation. This cabinet architecture provides the mechanical stability required for large outdoor LED wall installations and touring applications.
The cabinet locking system incorporates color-coded safety indicators, allowing quick visual verification of the lock status during installation. This solution simplifies inspection of large LED wall structures and helps maintain correct mechanical engagement of the cabinets.
Consistent Image Quality
The system supports pixel-by-pixel calibration, which ensures uniform brightness and consistent color reproduction across the entire LED wall.
Each LED module includes integrated calibration memory. The module stores calibration data internally and restores it automatically after replacement.
The AR PRO (MK2) system comes in two cabinet formats: 1000 × 500 mm and 500 × 500 mm
The standardized cabinet sizes allow scalable LED wall configurations and simplify integration with different screen geometries. The stacking structure provides high mechanical stability. Under a safety factor of 10, the system allows stacking of up to 18 cabinets, enabling the construction of large outdoor LED walls and festival stage displays.
